Tanks Mark VI to Mark X

Tank Mark VI

This vehicle did not progress beyond being a wooden model. It is interesting in that it was intended to do away with sponson mounted guns in favour of a single gun mounted in the front of the hull. It also had a fixed turret with machine guns providing all-round fire. It would have been powered by a Ricardo engine

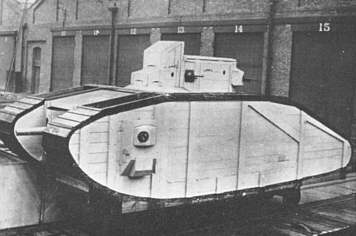

Proposed Mark  VI tank
Tank Mark VI

Tank Mk VII

This vehicle actually saw trials. It used Williams-Janney hydraulic variable speed gear drive, and although it was intended to manufacture 75 vehicles, the difficulty of making the gear units proved prohibitive and only 3 vehicles were completed before cancellation of the order following the 1918 armistice. In any event, the transmission was superseded by the Wilson epicyclic gear as used in the Mk V.

Tank Mk VII
Tank Mark VII

Tank Mk VIII "The International"

The Mark VIII was the culmination of an international collaboration between Britain, France and the USA which started in 1917. Hence the name for the tank of  "The International". The French withdrew from the project in 1918, and the first vehicles were delivered in 1919/20, too late for the War. the American built vehicles were powered by a Liberty engine, giving the alternative name of "Liberty Tank" to the vehicle. The British built vehicles were powered by two 150hp 6 cylinder Ricardo engines arranged in a 12 cylinder V configuration. The engine was housed in its own compartment, a great advance on the previous marks. The most obvious difference between US and British vehicles was the presence of ball mounted Hotchkiss MGs in the superstructure sides of the British vehicles. The US vehicles had Browning MGs mounted in the front and rear of the superstructure only.

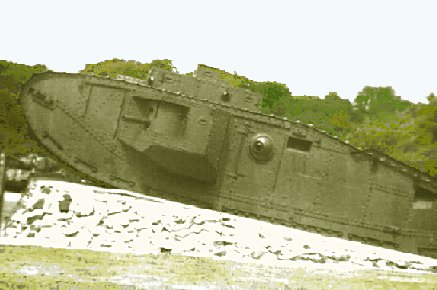

British Mk VIII at Bovington, 1969
British built Mark VIII at Bovington, 1969

Interior of  Mk VIII
Interior of Mk VIII
Apologies for the reflections
Ricardo V12 engine
Ricardo V12

Tank Mk IX

The Mark IX was a supply tank which could also be used as an APC. It could carry 500 cu ft of stores internally, or 30 men. There was additional storage space on the roof. The first machines were delivered in October 1918, but they never saw action. There is a surviving vehicle at Bovington.
Mark IX  supply tank
Mark IX at Bovington

150hp Ricardo engine and driver's position
Front of Mk IX showing 150hp Ricardo engine

Mk IX stowage area



The stowage area of the Mk IX

The transmission unit and drive shaft are visible, but unfortunately the transmission is not complete and the cross shaft to the driving chain assemblies is not present. Note that sides of the Mark IX are cut back compared with the double skinned sides of earlier marks. This was to maximise storage space.

Tank Mk X

This vehicle was to be an improved Mk V, but never got beyond the design stage and was cancelled at the time of the 1918 Armistice. I have no details, and any further information would be most welcome.
