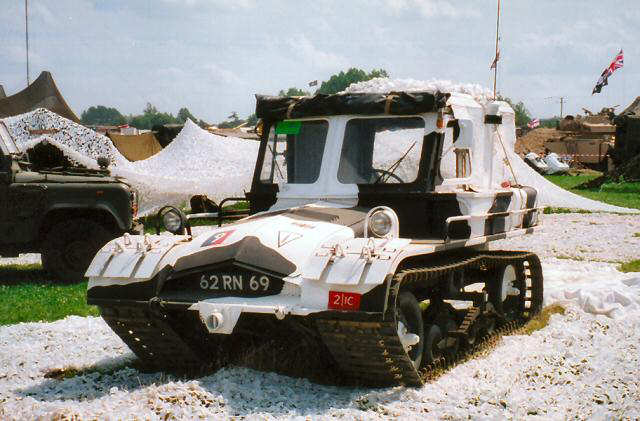

Aktiv ST4
Heliportable over snow vehicle for arctic operations in Norway on NATO's Northern flank, Royal Marines 1970 - 1980.
Half ton cargo vehicle with 1600 cc VW engine, speed 24 km/h. Gradient 60 degrees, ground pressure 0.05 kg/sq. cm. A/T version available with Wombat.

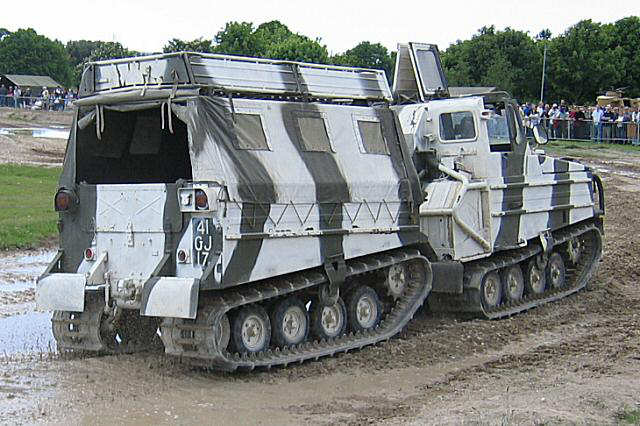

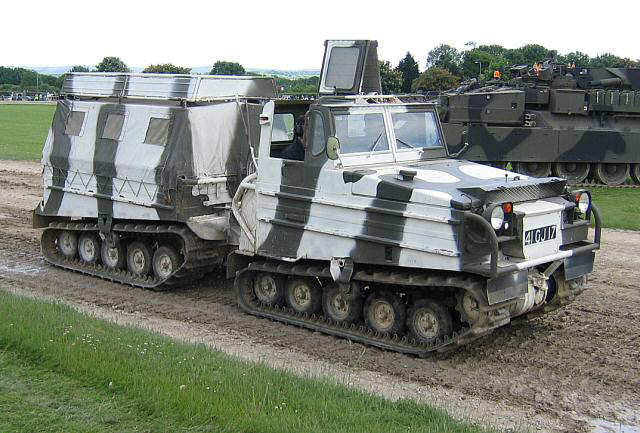

Hagglunds Bv202E
Carrier, Full Tracked, Articulated, LHD, Bv202E
Armament l x 7.62 mm L7A2 Machine-Gun (if' fitted); Crew 2 + 8-10; Weight
in action 4,200 kg; Length 6.172 m; Height 2.21 m; Width 1.759 m; Ground
clearance 0.3 m; Maximum road speed 39 knm/h; Range (roads) 400 km; Engine
type Volvo type B18 petrol; Engine power 91 bhp; Engine capacity 1.78
litres; Fuel capacity 156 litres.
Service in Norway with the Army, RAF and Royal Marines as a multi-purpose carrier, artillery tractor, REME support vehicle, mortar carrier, ambulance, and other roles. Replaced by Bv206.

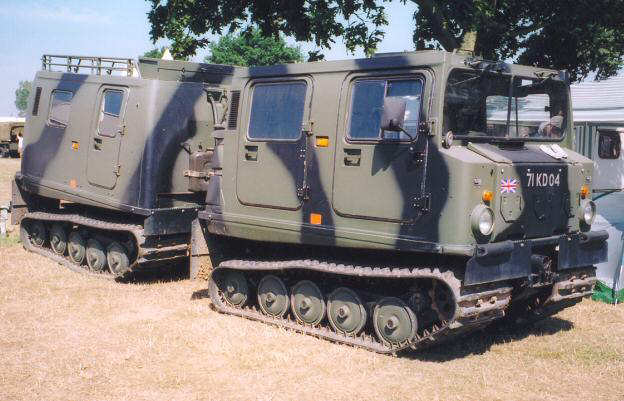

Hagglunds Bv206
Bv206 All-terrain Carrier
(Data for standard version)
Armament 1 x 7.62 mm L7A2 Machine Gun (if fitted); Cab seating (front
unit) 5, (rear unit) 10 or 11; Weight loaded 6,740 kg; Length 6.9 m;
Height 2.4 m; Width 1.87 m; Track width 0.62 m; Ground clearance 0.35
m; Maximum road speed 52 km/h; Maximum water speed 3 km/h; Range (roads)
300 km; Engine type Mercedes-Benz OM 603.950 diesel; Engine capacity
2.996 litres; Engine power 136 hp at 4,600 rpm.
First ordered in 1981, over 600 of these vehicles saw British service.

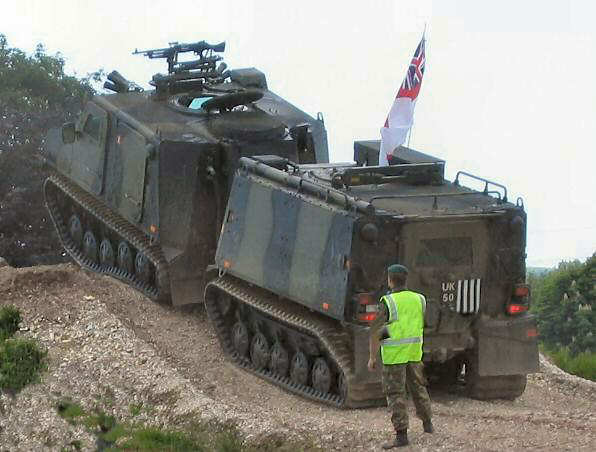

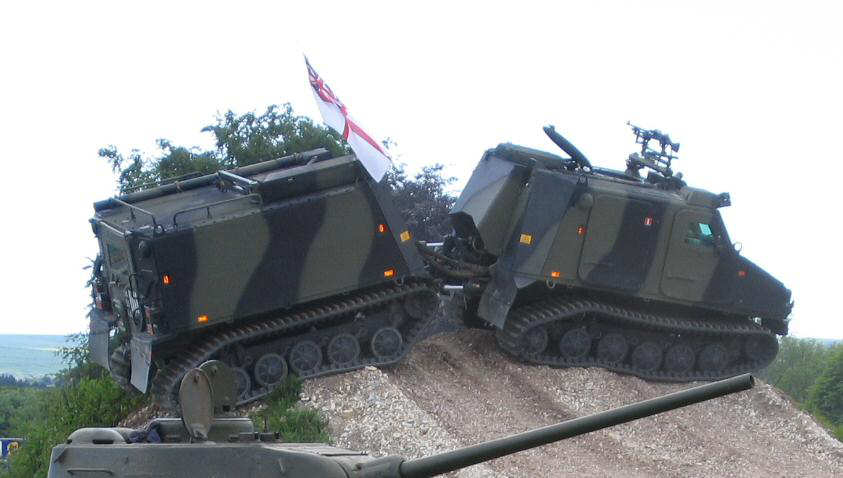

Alvis Hagglunds BVS10 Viking Amphibious Armoured All-terrain Vehicle
BVS10 Viking
The first production Viking was delivered in July 2003;108 Vikings
have been ordered for the Royal Marines.
Cummins 5900 cc in-line 6 cylinder diesel engine giving a max road speed
of over 80 km/h and a combat weight of 10,600 kg
