The Vickers Medium Tank



On the
move

This vehicle was introduced in the 1920s, and was a considerable advance over the earlier WW I style vehicles, having a rotating turret and a good turn of speed, an impression of which can be gained from the above picture. It ran to two principal marks, with a number of sub-marks and variants. The construction was on a frame, as can be seen below

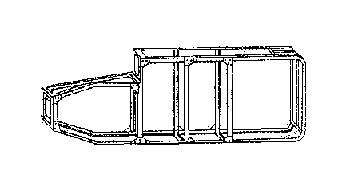

Hull frame

This is the hull frame



Section of
      Mk 1a

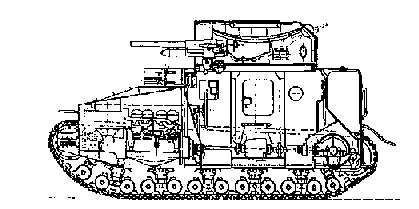

Section of Mk IA



Armstrong Siddeley 90hp air cooled engine

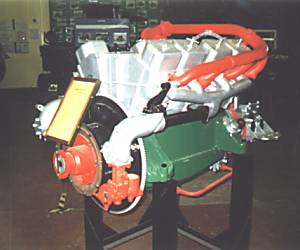

Armstrong Siddeley V8 90hp air cooled engine





Mk 1

Medium Mark I

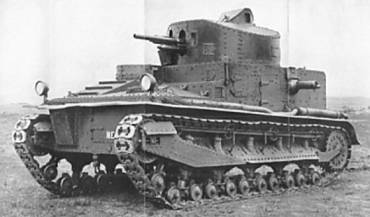

Medium Mk
      1A*

Medium Mark IA*



Medium Mk
      2

Medium Mark II

With 6RTC in Egypt  (1933-38)

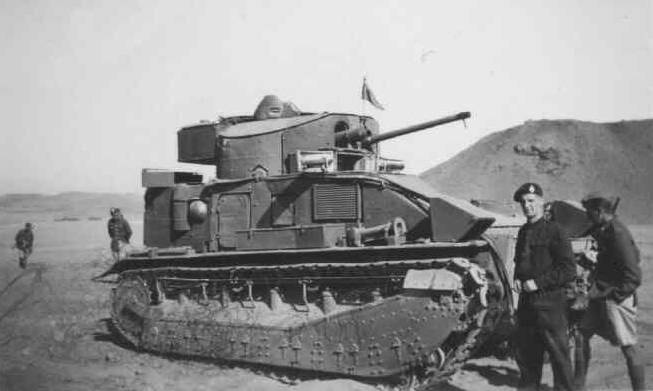

Mk 2

Medium Mark II

With 6RTC again. These vehicles were asbestos clad, and the panels are visible in this picture

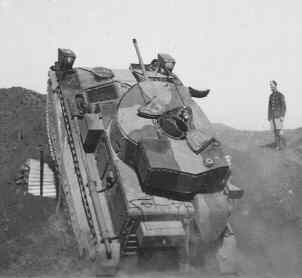

Medium Mark 2

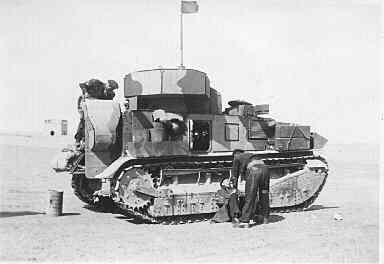

Another vehicle in Egypt



Interior of
      Medium Mk 2

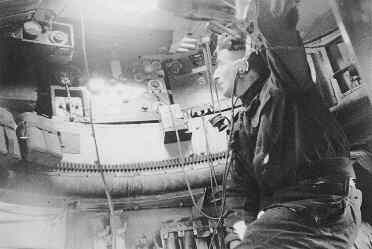

Interior view of Medium Mk 2

Showing radio equipment in the bustle



Mk 2 Interior

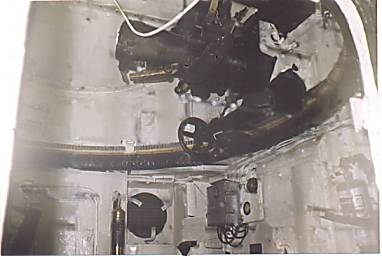

Interior of Mk II

Showing main armament



Interior Mk IA*

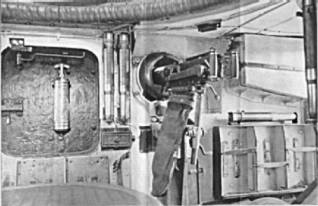

Interior of Mk IA*

Showing hull door and MG



SUMMARY OF PRINCIPAL MARKS

All Marks

Main Distinguishing Features for Different Types

Type

Weight (tons)

Main Armament

MGs

Comments

Mk I

11.7

3 pdr

4 x 0.303" Hotchkiss,

2 x 0.303" Vickers



Mk IA

11.9

3 pdr

4 x 0.303" Hotchkiss,

2 x 0.303" Vickers

Bevelled rear of turret for AA Hotchkiss MG

Mk IA*

12

3 pdr

3 x 0.303" Vickers

Bishopsmitre cupola. Co-axial MG

Mk II

13.2

3 pdr Mk II

4 x 0.303" Hotchkiss,

2 x 0.303" Vickers

Hinged skirting plates. New drivers  hood above hull line.

Mk II*

13.5

3 pdr Mk II

3 x 0.303" Vickers

Co-axial MG

Mk II**

3 pdr Mk II

3 x 0.303" Vickers

Bustle for wireless set

Mk IIA

13.5

3 pdr Mk II

3 x 0.303" Vickers

No rear turret bevel.

Armoured box rising above hull line on LH forextract fan

Mk IIA* 13.5

3 pdr Mk II

3 x 0.303" Vickers

Bustle for wireless set

CS versions



3.7" howitzer



"Close support" versions

Predecessors, Variants and Successors

Vickers
      Light Tank 1921, No 1

Vickers Light Tank 1921, No 1

Main armament was 4 x Vickers MGs. No 2 was armed with a 3 pdr.
These vehicles were the immediate  predecessors of the Vickers Medium Mk I,
but were not adopted for service



Bridging vehicle

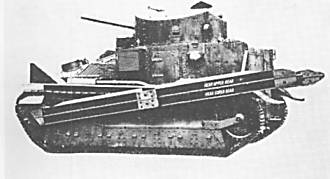

Bridging Vehicle

This was an attempt to build a bridging system using the Medium Mk II
It was not adopted.

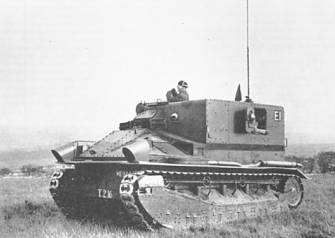

Medium II
      Box Tank, 1928

Medium II Box Tank, 1928


An early form of armoured command vehicle. One vehicle built.

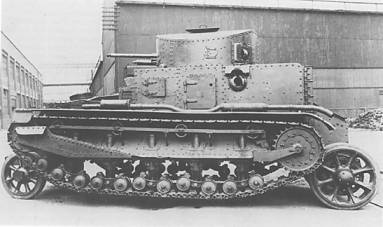

Wheel and
      Track vehicle

Wheel and Track Tank

Based on a Medium Mark 1 - an attempt to overcome track wear

Vickers Medium
      C

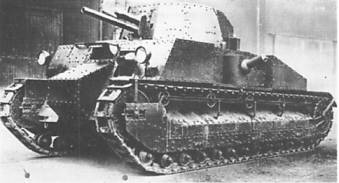

Vickers Medium C

This was built for Japan, and was based on the Medium Mk II chassis.
It was armed with a 6pdr.

Thanks to Chris Evans for pictures from his private collection. Other sources include AFV 1919/40 (Profile) and Mechanised force by David Fletcher (HMSO)
